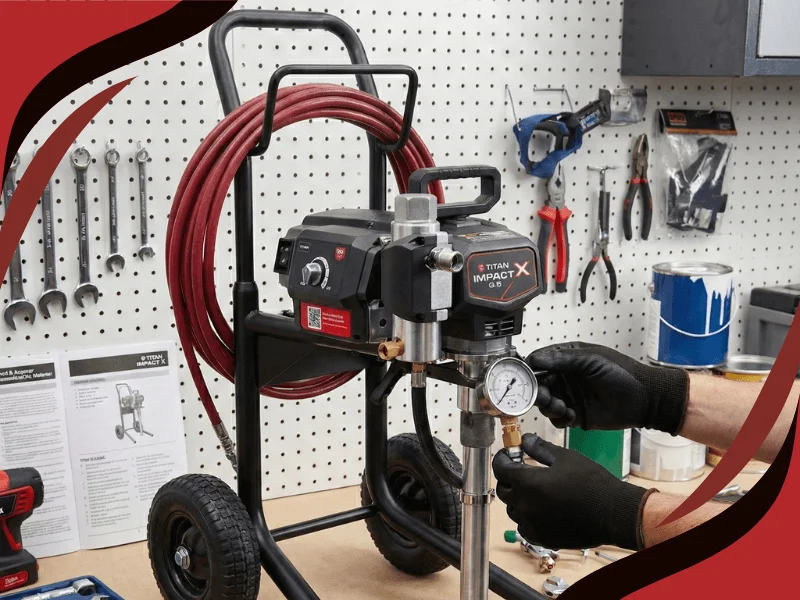

A day at work turns hectic when your Titan 440 sprayer starts causing troubles instead of helping you out on your job site. It may generate messy lines or spit paint instead of generating fine lines.
Now, if you know how to fix the issue yourself, you can save a day; otherwise, you have to send it for service to the technician.The Titan 440 Sprayer manual is quite helpful to help you in such situations. You can learn about the pressure management, part numbers, expected problems, and their solutions from the manual.
Pressure Won’t Build
The most common complaint with the Titan 440 is that the machine runs but does not build enough pressure to spray properly.Start with the prime valve. If it is left in the prime position, the machine cannot build pressure because it is circulating fluid back to the bucket rather than pushing it to the gun. This is an easy miss after a fast setup, and it is the first thing to check.
If the prime valve is good, check the filters; they might be clogged. Change or clean them according to the situation. If it’s not the filters, the foot valve might be clogged or dirty. Clean the foot valve and inspect the ball and seat for wear. Replace them if there is any visible damage.
Pressure Builds but Drops Mid-Job
Suppose you are spraying and the machine keeps up for the first few minutes, then pressure starts dropping before recovering, then dropping again.
This pattern almost always points to the packings inside the pump. The packings are the seals that create the pressure chamber inside the pump cylinder. When they wear them out, they cannot hold pressure consistently. The pump compensates by cycling faster, which causes the motor to sound like it’s working harder, but it cannot maintain what a worn seal cannot contain.
Packing replacement on the Titan 440 is a documented procedure in the manual. It requires removing the pump cylinder, extracting the worn packings, and pressing new ones in correctly. The critical detail is that packings must be installed in the right orientation and lubricated properly before assembly. Dry or incorrectly oriented packings fail faster than worn original ones. Use the packing lubricant specified in your manual, not a substitute.
The Gun Is Spitting or Pulsing
A spitting spray gun is usually caused by an air issue rather than a pressure issue.
Check that the intake tube is fully submerged in the material. If the tube is pulling air along with fluid, the gun will spit. This happens most often when working from a nearly empty container or when the intake tube has shifted position.
If the tube is properly submerged and spitting continues, check the spray tip. A worn or partially blocked tip creates an uneven flow at the orifice that appears as spitting. Remove the tip, inspect the orifice for wear or debris, and test with a known good tip if you have one available. A tip that has worn beyond its rated orifice size cannot produce a consistent spray pattern regardless of how the machine is adjusted.
Fluid Leaking Around the Pump or Manifold
Fluid appearing around the pump area during operation points to the throat packings or the manifold connections.
The throat packings seal the pump rod as it moves up and down. Fluid leaking here means the packings have worn and are no longer sealing around the rod. This is a normal wear item on any airless sprayer used regularly. Replace the throat packings following the procedure in the Titan 440 sprayer manual, paying attention to the correct orientation for the upper and lower packing sets.
For leaks at the manifold connections, check that all fittings are tight. Vibration during operation can loosen connections over time. If tightening the fitting does not stop the leak, the seal or O-ring inside the connection has likely failed and needs to be replaced. Use only the correct replacement parts for these seals. An O-ring from a hardware store may be the right diameter, but the wrong material for the solvents in your coatings.
Final Words: Post-Repair Care and Maintenance
After repair, it’s better to flush water or a liquid solvent through your machine to make it clean. Don’t store it with leftover paint inside. Always make sure to empty the machine and clean it thoroughly before you plan to store it for a long time. Change the filters and seals regularly for maximum efficiency.
Store the machine away from freezing temperatures, especially when using water-based materials, as freezing can damage important pump parts. Most common Titan 440 issues come from clogged filters, worn packings, damaged tips, or faulty foot valves. Regular cleaning and replacing worn parts on time will keep the machine working reliably for years.
